Vehicle Specs
UHD-2 Truck Specs

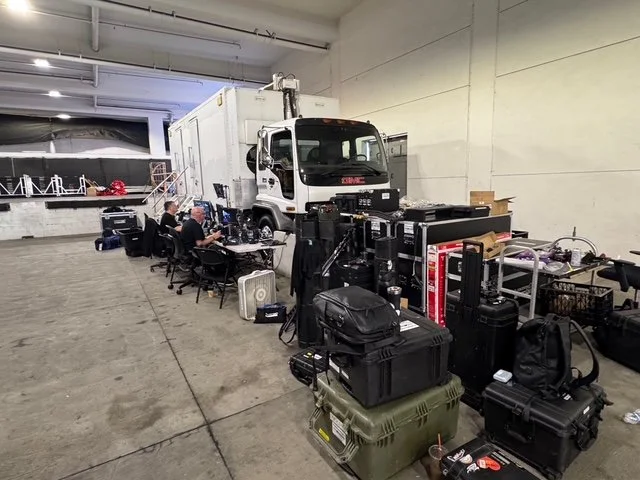

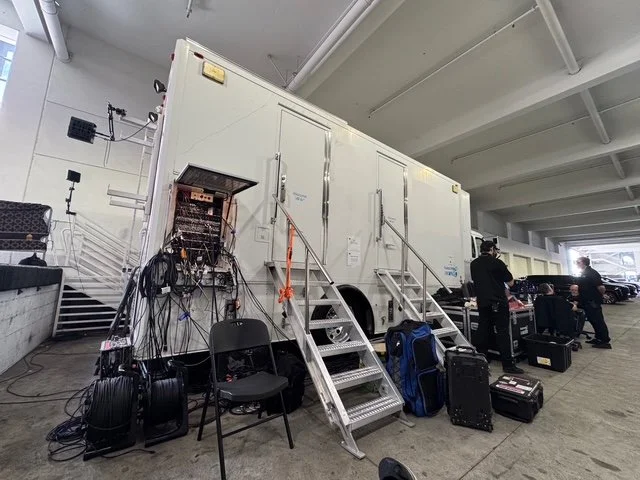

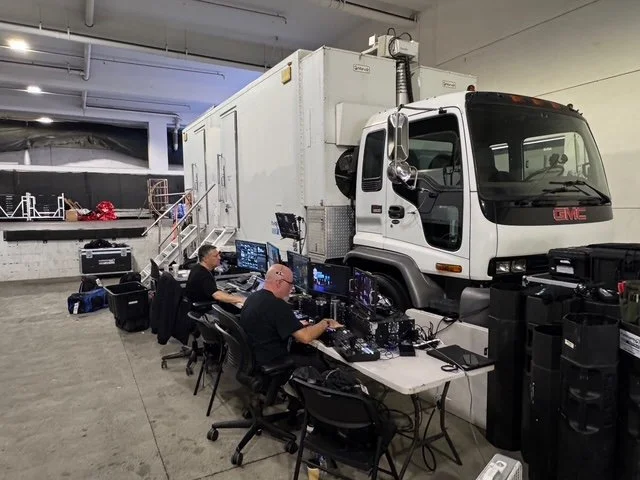

● GMC T6500 cabover diesel
● 200 amp Cam-Lock shore power
● Generac diesel generator
● Shore power: 120-277 VAC, 2-pole, 3-wire (H-H-G)
● Length 35’ x width 7’ x height 14’
Production

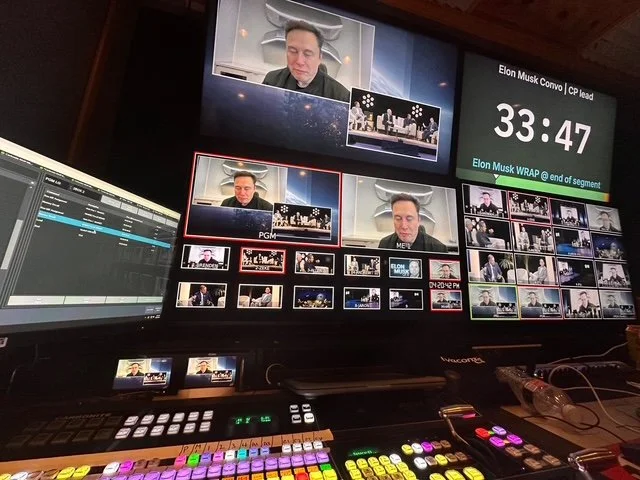

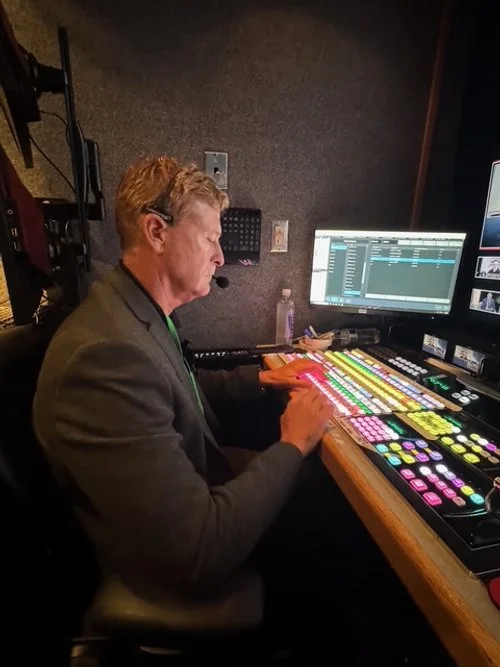

● Ross Carbonite Ultra
● Ross 2S panel
Communications
● Coms panels at all positions
● 16 4W ties available
● Dante beltpacks available
Cameras

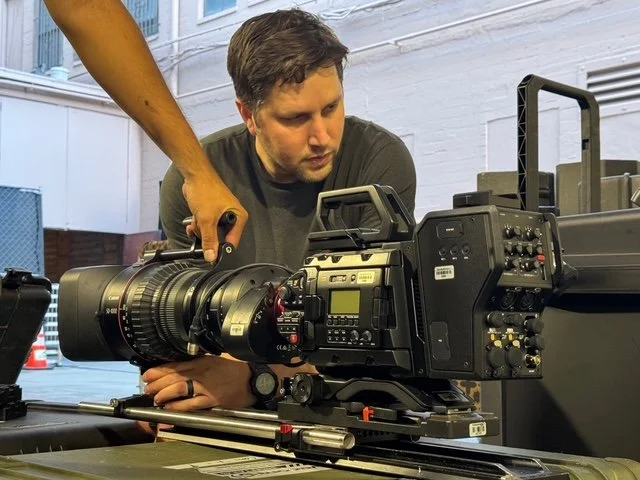

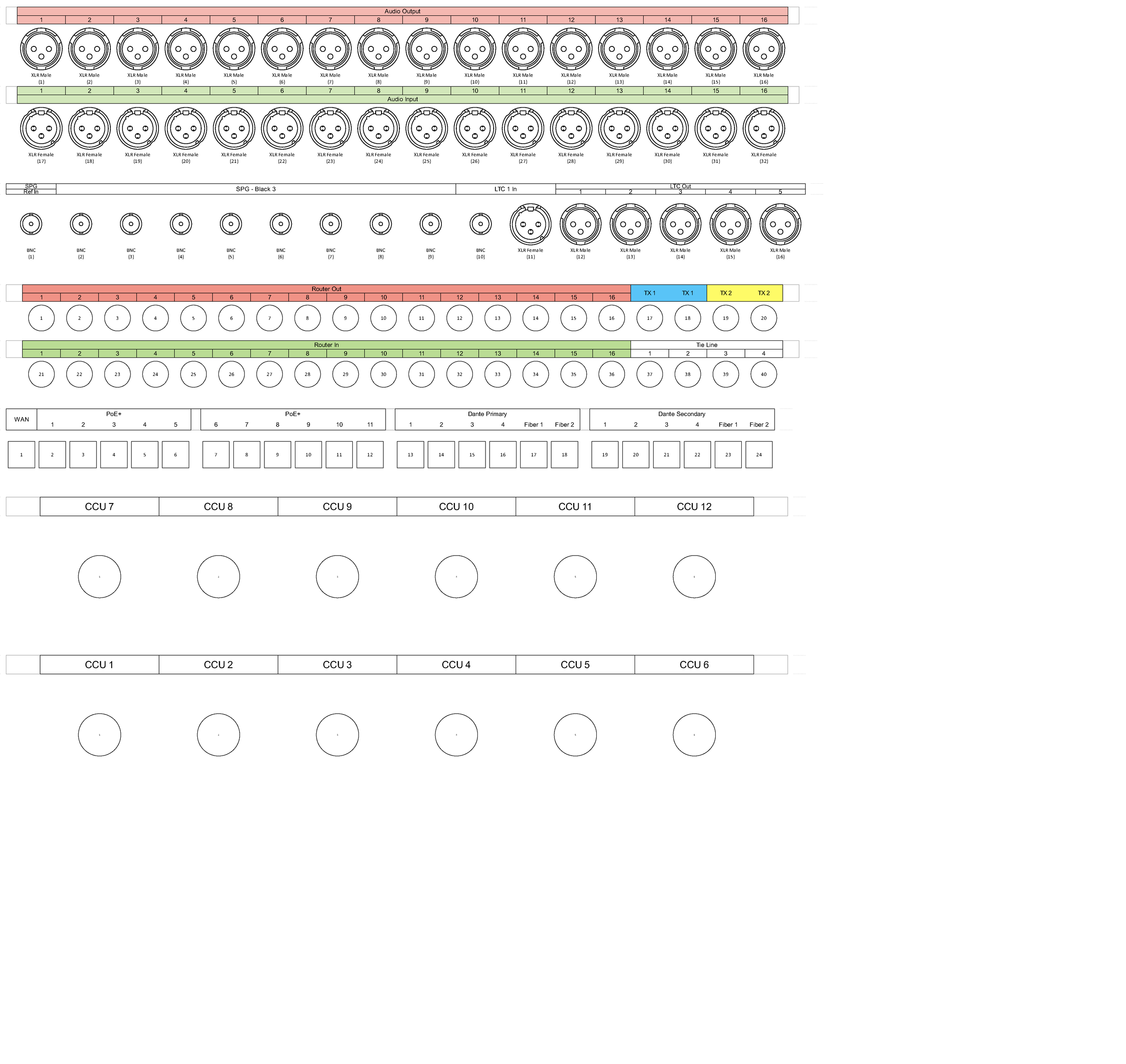

● Wired for 12 CCUs, includes Blackmagic URSA Broadcast G2 CCUs but others available upon request.
● Blackmagic Camera Control Panel, wired for 12 individual RCPs.
Camera Support
● Sachtler V20 tripods
● Vinten pedestals available
Lenses
● B4 and PL mount lenses available per project

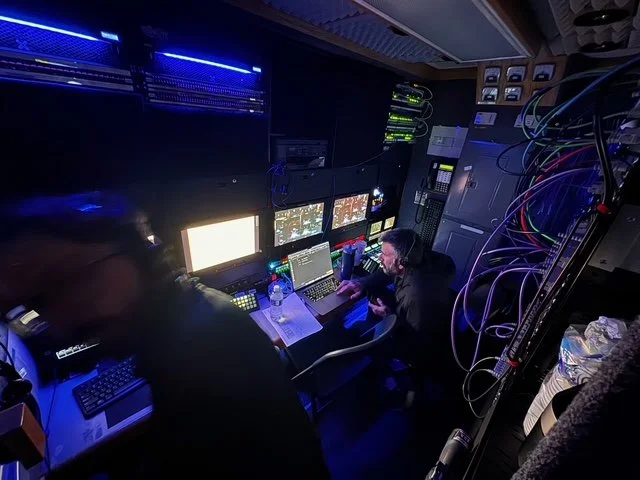

Support Equipment
● Ross Ultrix FR2 router
● Blackmagic Videohub 40x40 12G router
● UHD video (baseband): 72x72
● UHD video (single mode fiber): 7x7
● Embed/de-embed: Dante embed/deembed on all inputs and outputs
● Elgato Stream Deck Studio control panels
