DECIMATOR MD-LX HDMI/SDI Bidirectional Converter

Key Features

• Pocket-Sized Bidirectional Converter

• HDMI Input and Output

• 3G/HD/SD-SDI Input and Output

• Multiple Input/Output Conversion Modes

• HDMI and SDI Input Locks

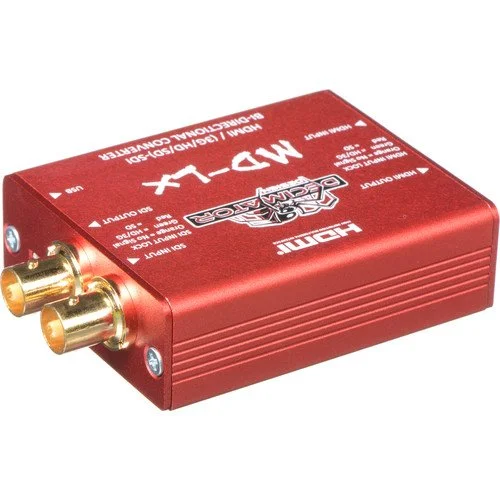

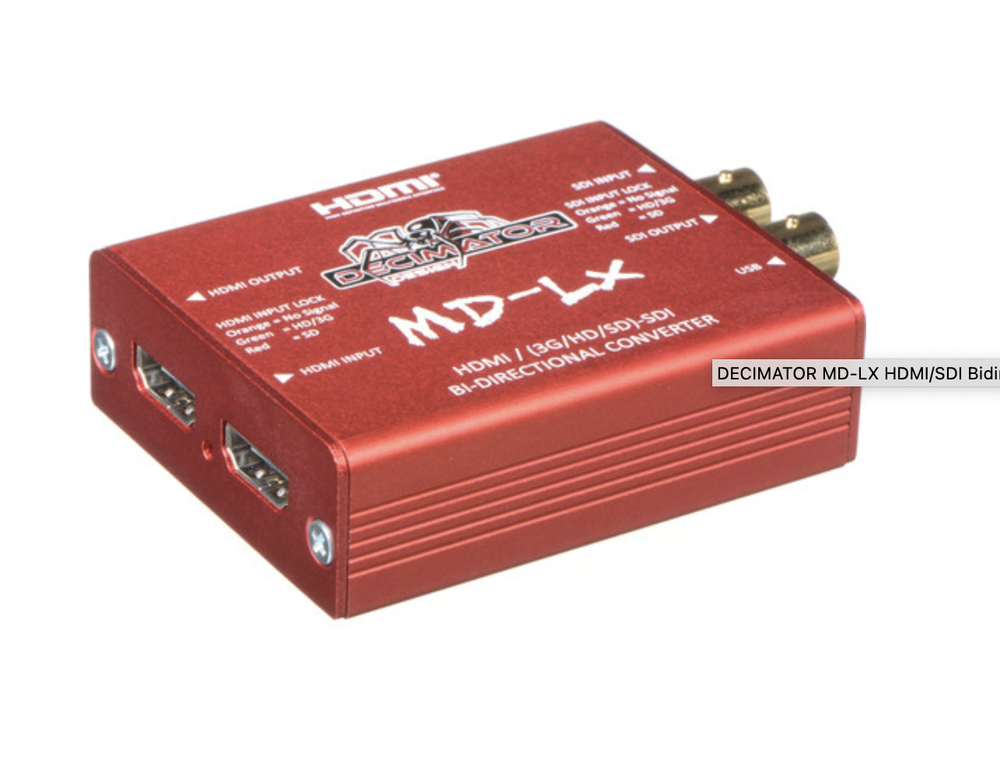

The DECIMATOR MD-LX is a pocket-sized bidirectional converter featuring an HDMI input and output on one side, and 3G/HD/SD-SDI input and output on the other. It supports up to Full HD 1080p60 resolution and offers multiple input/output conversion modes.

Conversion Modes

• Auto select: Active input to all outputs, or SDI-to-HDMI and HDMI-to-SDI if both inputs are active

• HDMI input to SDI output and SDI input to HDMI output

• SDI input to HDMI and SDI outputs

• HDMI input to HDMI and SDI outputs

Other Features

• Supports 3G Level A and B and allows for conversion between both

• USB port for power, control, and firmware upgrades

• HDMI and SDI input locks
