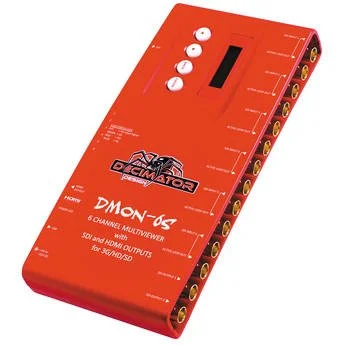

DECIMATOR DMON-6S 6 Channel Multi-Viewer with HDMI & SDI Outputs
Key Features
1 to 6-Channel Multiviewer/Multiplexer
6 x SD/HD/3G-SDI Active Loop-Through
Supports Embedded Audio
Tally Display Selections
RS422/485 for Dynamic UMD & Tallies
LCD Info Panel with Button Control
Independent Simultaneous Format Display
Selectable Output Format
Premade & Custom Layouts
32 GPI (General Purpose Input)
Flexibility, compact form factor, and operation without a computer make the Decimator DMON-6S 6 Channel Multiviewer with HDMI & SDI Outputs a valuable tool on location and in the studio. The unit can be used as either a one to six-channel Multiviewer or as a six-to-one input multiplexer. It supports six independent SDI inputs with active loop-through outputs, or you can view all six inputs on one optional monitor. You can also Multiplex the 6 input signals, allowing you to transmit the six SDI signals over a single output. It supports audio embedded in the SDI stream and supports RS422/485 protocols that allow you to select tally display and control UMD (under monitor display) position and size.
The built-in LCD menu screen and control buttons, allows you to access menu functions without needing to connect to an external computer or utilize DIP switches for settings. The multiview output supports and displays inputs with different formats and frame rates at the same time, and the pass-through mode allows any of the six inputs to be selected for output via the SDI and HDMI outputs. you can select from premade display layouts or create and save your own custom layouts, and with up to 32 GPI, you can interface with optional devices for tally and remote switching.
Note:
Firmware Release 2.0.6 adds 3G-SDI Level B support for 1080p60/59.94/50 for this model, as well as the ability to set the SDI output to 3G level A or B and convert between level A and B.
The DMON-6S is a small form factor 3G/HD/SD-SDI 1 to 6-channel multiviewer or six-to-one input multiplexer/portable converter that incorporates an LCD and button control to set up and control the unit.
Six 3G/HD/SD-SDI active loop copies of each input
Custom layouts with various standard layouts
16-character UMD overlay per window with individual enables, custom positioning, and size
16-channel audio metering overlay per window with individual enables, custom positioning, and size
Safe Action and Safe Title overlay per window with individual enables and adjustment
Center Cross overlay per window with individual enable
Audio ID overlay
Tallies can be applied to either Tally Boxes (default), Outside Safe Action Area, or Border
Tally boxes allows for up to four tallies per window (green, red, blue, and yellow)
Load and restore custom layouts
Fast switching between inputs using full-screen scaling
Selectable output format in both full-screen and multiviewer mode
Low-latency buffering for each input, allowing non-synchronous inputs
Linked 3G/HD/SD-SDI and HDMI outputs
Six 3G/HD/SD-SDI inputs with auto detection (six formats supported in total)
Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
Variable aspect ratios per quadrant
Pass-through mode allows any of the six inputs to be selected for output
In pass-through mode, the selected input is passed through to both the 3G/HD/SD-SDI and HDMI outputs
The unit supports:
32 GPI on 37-pin D-SUB connector for tallies and remote switching
RS-422/485 on 37-pin D-SUB connector for Dynamic UMD and tallies via TSL protocol
USB port for control and firmware updates
