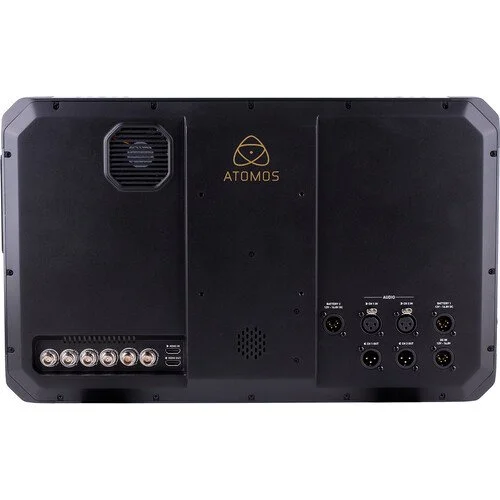

Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher
Key Features
1920 x 1080 IPS Touchscreen Display
HDMI 2.0 & 12G-SDI Inputs/Outputs
Quad-HD Live Switching & 5-Ch Recording
1200 cd/m² (±10%) Brightness
ProRes RAW Support
8-Bit+FRC 422 ProRes/DNxHR Encoding
HDR Mode with 10-Stop Dynamic Range
Two XLR Inputs with +48V
With an upgraded 19" 1920 x 1080 IPS touchscreen display and 1200 cd/m² brightness, the Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher maintains the same 4K recording, monitoring, and switching capabilities of its predecessor with a sharper and brighter display. Four 12G-SDI inputs and one HDMI 2.0 input can receive video signals up to 4K60 and support live quad-channel switching. Five-channel recording captures the input feeds as well as the live switching to create one output video for efficient viewing. Genlock and LTC timecode are also supported by the HDMI 2.0 and quad-SDI connections.
Intuitive Interface
The Sumo 19" SE can record in ProRes RAW and 8-bit+FRC 422 ProRes/DNxHR encoding formats. RAW, Log, PQ, and HLG outputs from various cameras or gaming consoles can be processed by the device and mapped to display 10+ stops of dynamic range HDR in real time. This makes the Sumo 19" SE ideal for monitoring in the field by the director or client. Two XLR inputs with +48V phantom power support balanced audio recording with external devices. Included desktop feet, mounting supplies, and various power supply options allow you to easily integrate the Sumo 19" SE into your studio setup.
SE Upgrades and Features
Upgraded 19" IPS display with 1200 cd/m² brightness (±10%)
Live, quad-channel HD switching and recording
Supports recording in ProRes RAW and 10-bit 422 ProRes/DNxHR
HDMI 2.0 and quad-SDI support genlock and LTC timecode
Works in HLG and PQ formats of HDR
Live Quad-Channel HD Switching and Recording
Record four streams simultaneously as separate ISOs while cueing and switching in real time
Record fifth channel of switched feel and display, resulting in mixed output live on set (via HDMI or SDI)
Switching is asynchronous and can be output with Atomos Connect 4K
Two XLR Inputs with Phantom Power
Full-size XLR connections with +48 phantom power
Connect two external microphones for balanced analog audio recording and monitoring
Dedicated meters, gain controls, and adjustments for frame delay on each channel
Mic or line-level audio can be synced with embedded HDMI and SDI audio
Powering the SE
Dual 4-pin XLR inputs for continuous dual-battery power
Includes BattWing mounting bracket for integration of V-mount or Gold mount battery 95Wh or larger
Includes AC power supply, 12-16.8 VDC input
